Making Meaningful Visualizations


Meaningful Visualizations - Sketchnote by @nitya

"If you torture the data long enough, it will confess to anything" -- Ronald Coase

One of the essential skills for a data scientist is the ability to create meaningful data visualizations that help answer specific questions. Before visualizing your data, you need to ensure it has been cleaned and prepared, as you learned in previous lessons. Once that's done, you can start deciding how best to present the data.

In this lesson, you will explore:

How to select the appropriate chart type
How to avoid misleading visualizations
How to use color effectively
How to style charts for better readability
How to create animated or 3D visualizations
How to design creative visualizations

Pre-Lecture Quiz

Choose the right chart type

In earlier lessons, you experimented with creating various data visualizations using Matplotlib and Seaborn. Generally, you can select the appropriate chart type based on the question you're trying to answer using this table:

Task	Recommended Chart Type
Show data trends over time	Line
Compare categories	Bar, Pie
Compare totals	Pie, Stacked Bar
Show relationships	Scatter, Line, Facet, Dual Line
Show distributions	Scatter, Histogram, Box
Show proportions	Pie, Donut, Waffle

✅ Depending on the structure of your data, you may need to convert it from text to numeric format to make it compatible with certain chart types.

Avoid deception

Even when a data scientist carefully selects the right chart for the data, there are many ways data can be presented misleadingly to support a particular narrative, often at the expense of the data's integrity. There are numerous examples of deceptive charts and infographics!

🎥 Click the image above to watch a conference talk about misleading charts.

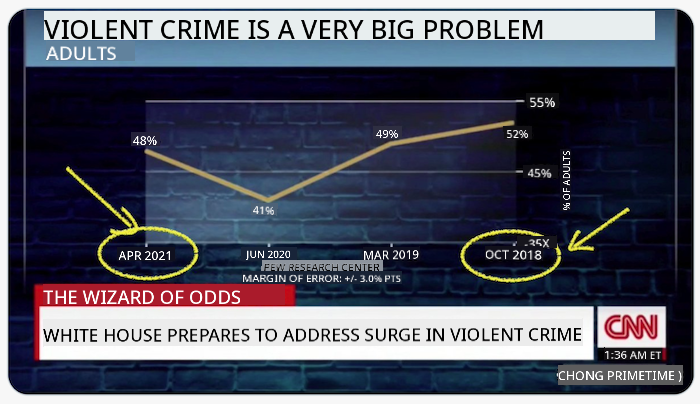

This chart reverses the X-axis to present the opposite of the truth based on the dates:

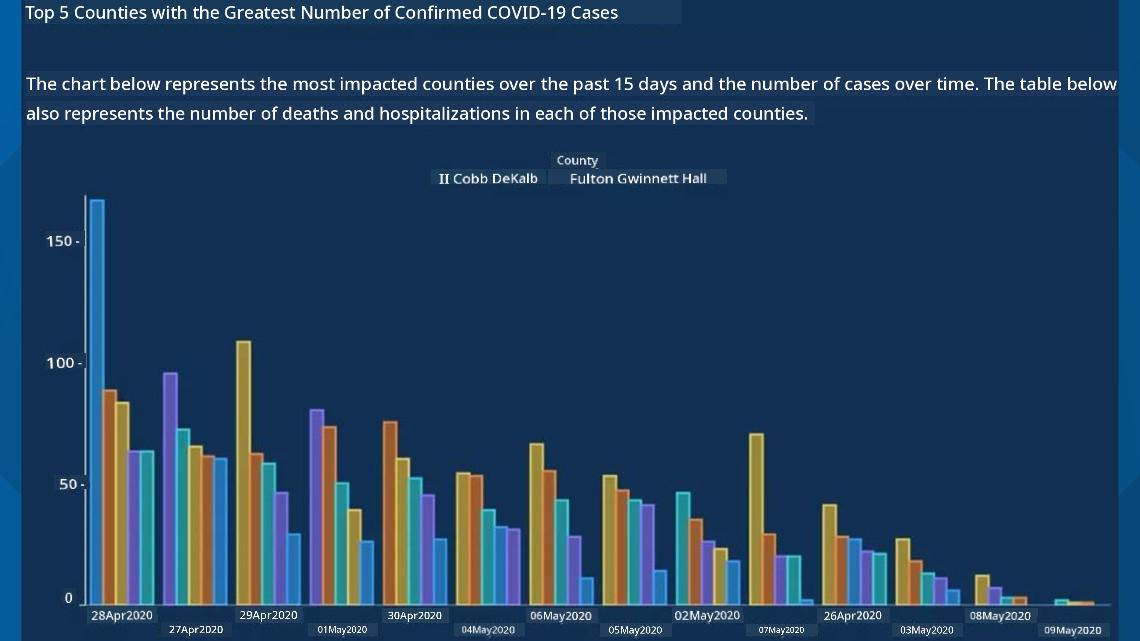

This chart is even more misleading, as the eye is drawn to the right, suggesting that COVID cases have declined over time in various counties. However, upon closer inspection of the dates, you'll notice they have been rearranged to create a deceptive downward trend.

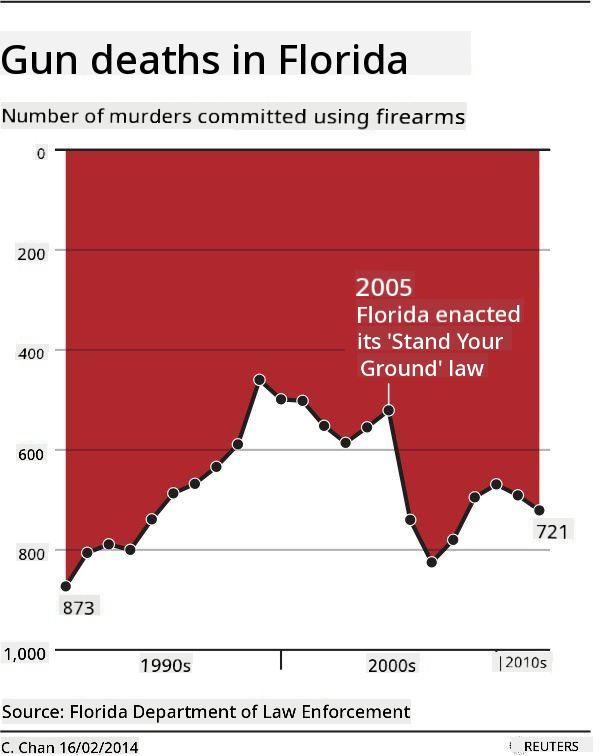

This infamous example uses both color and a flipped Y-axis to mislead viewers. Instead of showing that gun deaths increased after the passage of gun-friendly legislation, the chart tricks the eye into believing the opposite:

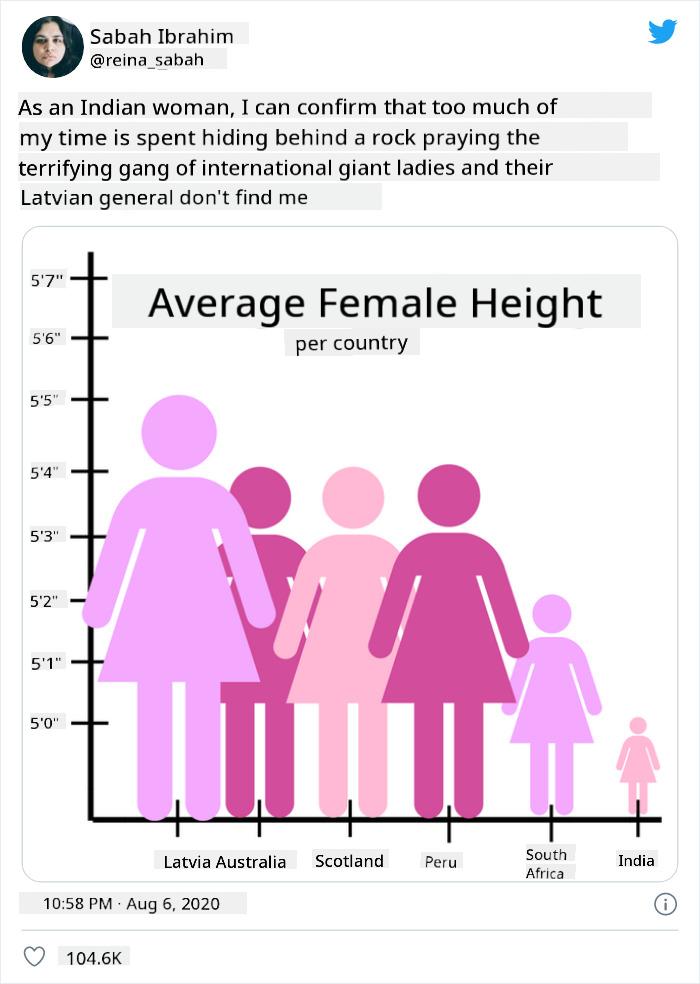

This peculiar chart demonstrates how proportions can be manipulated, often to humorous effect:

Another deceptive tactic is comparing things that are not comparable. There is a fascinating website dedicated to 'spurious correlations,' showcasing absurd 'facts' like the correlation between Maine's divorce rate and margarine consumption. A Reddit group also collects examples of poor data usage.

It's crucial to understand how easily the eye can be tricked by misleading charts. Even with good intentions, a poor choice of chart type—like a pie chart with too many categories—can lead to confusion.

Color

The 'Florida gun violence' chart above illustrates how color can add another layer of meaning to visualizations, especially when charts are not created using libraries like Matplotlib or Seaborn, which offer pre-designed color palettes. If you're designing a chart manually, take some time to study color theory.

✅ Keep in mind that accessibility is a key aspect of visualization design. Some users may be colorblind—does your chart work well for those with visual impairments?

Be cautious when selecting colors for your chart, as they can convey unintended meanings. For example, the 'pink ladies' in the 'height' chart above add a distinctly 'feminine' connotation, which contributes to the chart's oddness.

While color meanings can vary across cultures and change depending on the shade, general associations include:

Color	Meaning
red	power
blue	trust, loyalty
yellow	happiness, caution
green	ecology, luck, envy
purple	happiness
orange	vibrance

If you're tasked with creating a chart with custom colors, ensure that your design is both accessible and that the chosen colors align with the intended message.

Styling your charts for readability

Charts lose their value if they aren't easy to read! Take time to adjust the width and height of your chart to ensure it scales well with your data. For example, if you need to display all 50 states, consider showing them vertically on the Y-axis to avoid a horizontally scrolling chart.

Label your axes, include a legend if necessary, and provide tooltips for better data comprehension.

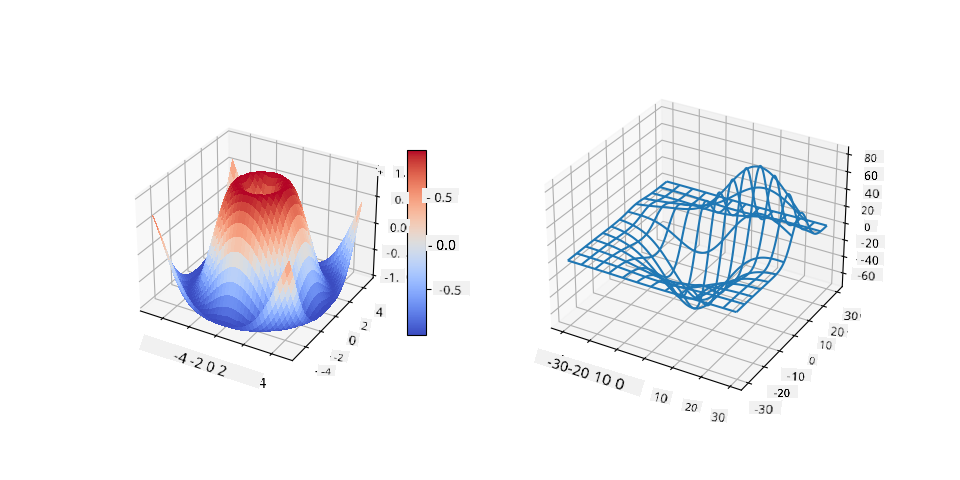

If your data includes verbose text on the X-axis, you can angle the text for improved readability. Matplotlib also supports 3D plotting if your data is suitable for it. Advanced visualizations can be created using mpl_toolkits.mplot3d.

Animation and 3D chart display

Some of the most engaging data visualizations today are animated. Shirley Wu has created stunning examples using D3, such as 'film flowers,' where each flower represents a movie. Another example is 'Bussed Out,' an interactive experience for the Guardian that combines visualizations with Greensock and D3, along with a scrollytelling article format, to illustrate how NYC addresses homelessness by bussing people out of the city.

"Bussed Out: How America Moves its Homeless" from the Guardian. Visualizations by Nadieh Bremer & Shirley Wu

While this lesson doesn't delve deeply into these powerful visualization libraries, you can experiment with D3 in a Vue.js app to create a visualization of the book "Dangerous Liaisons" as an animated social network.

"Les Liaisons Dangereuses" is an epistolary novel, presented as a series of letters. Written in 1782 by Choderlos de Laclos, it tells the story of the morally corrupt social maneuvers of two French aristocrats, the Vicomte de Valmont and the Marquise de Merteuil. Both meet their downfall, but not before causing significant social damage. The novel unfolds through letters written to various individuals in their circles, plotting revenge or simply stirring trouble. Create a visualization of these letters to identify the key players in the narrative, visually.

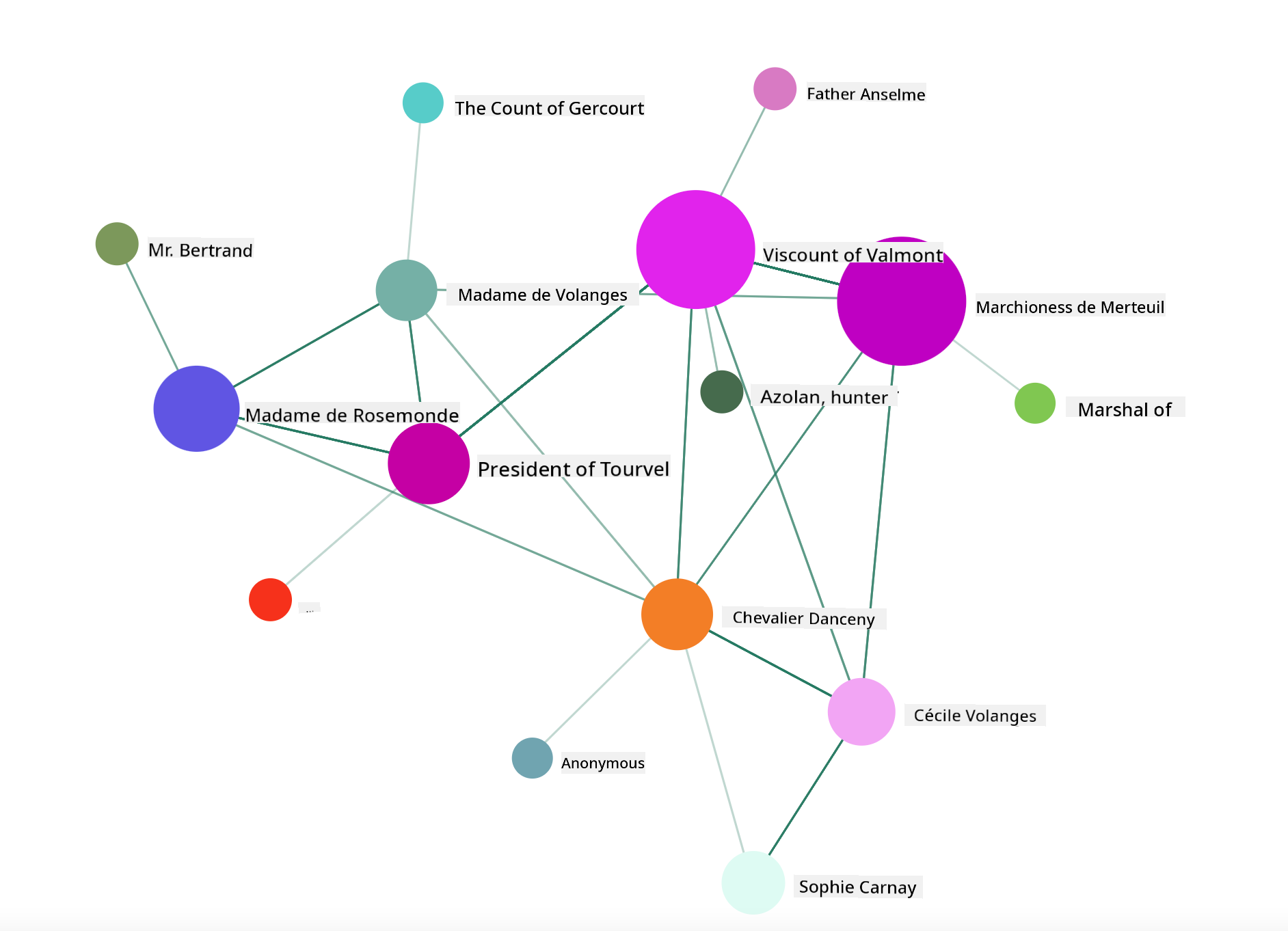

You will complete a web app that displays an animated view of this social network. It uses a library designed to create a network visualization using Vue.js and D3. When the app is running, you can drag the nodes around the screen to rearrange the data.

Project: Build a chart to show a network using D3.js

This lesson folder includes a solution folder where you can find the completed project for reference.

Follow the instructions in the README.md file in the starter folder's root. Ensure you have NPM and Node.js installed on your machine before setting up the project's dependencies.
Open the starter/src folder. Inside, you'll find an assets folder containing a .json file with all the letters from the novel, numbered, with 'to' and 'from' annotations.
Complete the code in components/Nodes.vue to enable the visualization. Locate the method called createLinks() and add the following nested loop.

Loop through the .json object to extract the 'to' and 'from' data for the letters and build the links object for the visualization library:

//loop through letters
      let f = 0;
      let t = 0;
      for (var i = 0; i < letters.length; i++) {
          for (var j = 0; j < characters.length; j++) {

            if (characters[j] == letters[i].from) {
              f = j;
            }
            if (characters[j] == letters[i].to) {
              t = j;
            }
        }
        this.links.push({ sid: f, tid: t });
      }

Run your app from the terminal (npm run serve) and enjoy the visualization!

🚀 Challenge

Explore the internet to find examples of misleading visualizations. How does the author mislead the viewer, and is it intentional? Try correcting the visualizations to show how they should appear.

Post-lecture quiz

Review & Self Study

Here are some articles about misleading data visualizations:

https://gizmodo.com/how-to-lie-with-data-visualization-1563576606

http://ixd.prattsi.org/2017/12/visual-lies-usability-in-deceptive-data-visualizations/

Check out these interesting visualizations of historical assets and artifacts:

https://handbook.pubpub.org/

Read this article on how animation can enhance visualizations:

https://medium.com/@EvanSinar/use-animation-to-supercharge-data-visualization-cd905a882ad4

Assignment

Build your own custom visualization
