Working with Data: Python and the Pandas Library


Working With Python - Sketchnote by @nitya

Databases provide efficient ways to store and query data using query languages, but the most flexible method for processing data is writing your own program to manipulate it. Often, database queries are more effective, but in cases where complex data processing is required, SQL may not be sufficient.

Data processing can be done in any programming language, but some languages are better suited for working with data. Data scientists typically use one of the following:

Python: A general-purpose programming language often recommended for beginners due to its simplicity. Python has many libraries that can help solve practical problems, such as extracting data from ZIP archives or converting images to grayscale. Beyond data science, Python is widely used for web development.
R: A traditional tool designed for statistical data processing. It has a large library repository (CRAN), making it a strong choice for data analysis. However, R is not a general-purpose language and is rarely used outside of data science.
Julia: A language specifically developed for data science, offering better performance than Python, making it ideal for scientific experiments.

In this lesson, we will focus on Python for simple data processing, assuming basic familiarity with the language. For a deeper dive into Python, consider these resources:

Learn Python in a Fun Way with Turtle Graphics and Fractals - A quick intro course on GitHub.
Take your First Steps with Python - A learning path on Microsoft Learn.

Data can take many forms. In this lesson, we will focus on three types: tabular data, text, and images.

Rather than covering all related libraries, we will focus on a few examples of data processing. This approach will give you a sense of what's possible and help you understand where to find solutions when needed.

Best advice: If you're unsure how to perform a specific data operation, search online. Stackoverflow often has useful Python code samples for common tasks.

Pre-lecture quiz

Tabular Data and Dataframes

You’ve already encountered tabular data when learning about relational databases. When dealing with large datasets spread across multiple linked tables, SQL is the best tool. However, when working with a single table and trying to gain insights or understanding—such as analyzing distributions or correlations—Python is a great choice. Data science often involves transforming data and visualizing it, both of which are easily done in Python.

Two key Python libraries for working with tabular data are:

Pandas: Enables manipulation of DataFrames, which are similar to relational tables. You can name columns and perform operations on rows, columns, or entire DataFrames.
Numpy: A library for working with tensors, or multi-dimensional arrays. Arrays contain values of the same type and are simpler than DataFrames, offering more mathematical operations with less overhead.

Other useful libraries include:

Matplotlib: Used for data visualization and graph plotting.
SciPy: Provides additional scientific functions. You may recall this library from discussions on probability and statistics.

Here’s a typical code snippet for importing these libraries at the start of a Python program:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy import ... # you need to specify exact sub-packages that you need

Pandas revolves around a few key concepts.

Series

A Series is a sequence of values, similar to a list or numpy array. The key difference is that a Series has an index, which is considered during operations like addition. The index can be as simple as an integer row number (default when creating a Series from a list or array) or more complex, like a date range.

Note: Introductory Pandas code is available in the accompanying notebook notebook.ipynb. We’ll outline some examples here, but feel free to explore the full notebook.

For example, let’s analyze sales at an ice cream shop. We’ll generate a Series of daily sales numbers over a period of time:

start_date = "Jan 1, 2020"
end_date = "Mar 31, 2020"
idx = pd.date_range(start_date,end_date)
print(f"Length of index is {len(idx)}")
items_sold = pd.Series(np.random.randint(25,50,size=len(idx)),index=idx)
items_sold.plot()

Now, suppose we host weekly parties where we consume an additional 10 packs of ice cream. We can create another Series indexed by week to represent this:

additional_items = pd.Series(10,index=pd.date_range(start_date,end_date,freq="W"))

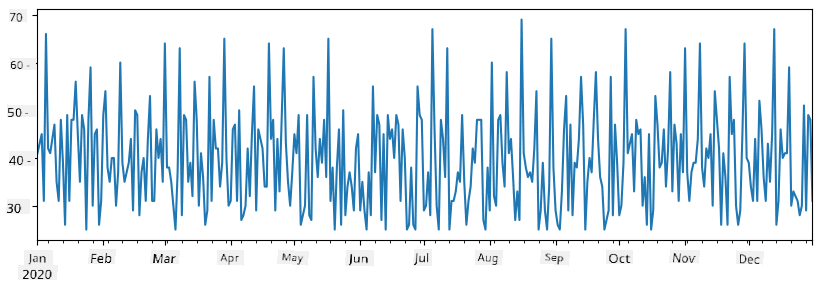

Adding these two Series gives the total number:

total_items = items_sold.add(additional_items,fill_value=0)
total_items.plot()

Note: We don’t use the simple syntax total_items + additional_items. Doing so would result in many NaN (Not a Number) values in the resulting Series because missing values in the additional_items Series lead to NaN when added. Instead, we specify the fill_value parameter during addition.

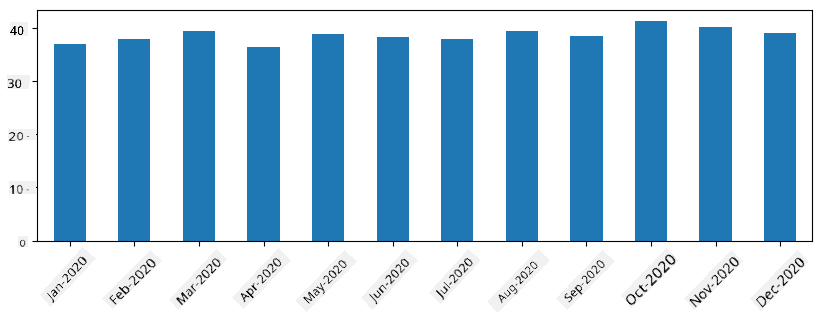

With time series, we can also resample data at different intervals. For instance, to calculate monthly average sales:

monthly = total_items.resample("1M").mean()
ax = monthly.plot(kind='bar')

DataFrame

A DataFrame is essentially a collection of Series with the same index. We can combine multiple Series into a DataFrame:

a = pd.Series(range(1,10))
b = pd.Series(["I","like","to","play","games","and","will","not","change"],index=range(0,9))
df = pd.DataFrame([a,b])

This creates a horizontal table like this:

	0	1	2	3	4	5	6	7	8
0	1	2	3	4	5	6	7	8	9
1	I	like	to	use	Python	and	Pandas	very	much

We can also use Series as columns and specify column names using a dictionary:

df = pd.DataFrame({ 'A' : a, 'B' : b })

This results in the following table:

	A	B
0	1	I
1	2	like
2	3	to
3	4	use
4	5	Python
5	6	and
6	7	Pandas
7	8	very
8	9	much

Note: We can also achieve this layout by transposing the previous table using:

df = pd.DataFrame([a,b]).T..rename(columns={ 0 : 'A', 1 : 'B' })

Here, .T transposes the DataFrame (swapping rows and columns), and rename allows us to rename columns to match the previous example.

Key operations on DataFrames include:

Column selection: Select individual columns with df['A'] (returns a Series) or a subset of columns with df[['B', 'A']] (returns another DataFrame).

Filtering rows: Filter rows based on criteria, e.g., df[df['A'] > 5] keeps rows where column A is greater than 5.

Note: Filtering works by creating a boolean Series (df['A'] < 5) that indicates whether the condition is True or False for each element. Using this boolean Series as an index returns the filtered rows. Avoid using Python boolean expressions like df[df['A'] > 5 and df['A'] < 7]. Instead, use & for boolean Series: df[(df['A'] > 5) & (df['A'] < 7)] (brackets are required).

Creating new columns: Add new columns with expressions like:

df['DivA'] = df['A']-df['A'].mean()

This calculates the divergence of A from its mean value. The left-hand side assigns the computed Series to a new column. Avoid incompatible operations, such as:

# Wrong code -> df['ADescr'] = "Low" if df['A'] < 5 else "Hi"
df['LenB'] = len(df['B']) # <- Wrong result

This example assigns the length of Series B to all values in the column, not the length of individual elements.

For complex expressions, use the apply function:

df['LenB'] = df['B'].apply(lambda x : len(x))
# or
df['LenB'] = df['B'].apply(len)

After these operations, the resulting DataFrame looks like this:

	A	B	DivA	LenB
0	1	I	-4.0	1
1	2	like	-3.0	4
2	3	to	-2.0	2
3	4	use	-1.0	3
4	5	Python	0.0	6
5	6	and	1.0	3
6	7	Pandas	2.0	6
7	8	very	3.0	4
8	9	much	4.0	4

Selecting rows by index: Use iloc to select rows by position. For example, to select the first 5 rows:

df.iloc[:5]

Grouping: Grouping is useful for results similar to pivot tables in Excel. For example, to calculate the mean of column A for each unique value in LenB:

df.groupby(by='LenB')[['A','DivA']].mean()

For more complex aggregations, use the aggregate function:

df.groupby(by='LenB') \
 .aggregate({ 'DivA' : len, 'A' : lambda x: x.mean() }) \
 .rename(columns={ 'DivA' : 'Count', 'A' : 'Mean'})

This produces the following table:

LenB	Count	Mean
1	1	1.000000
2	1	3.000000
3	2	5.000000
4	3	6.333333
6	2	6.000000

Getting Data

We have seen how simple it is to create Series and DataFrames from Python objects. However, data is often stored in text files or Excel tables. Fortunately, Pandas provides an easy way to load data from disk. For instance, reading a CSV file is as straightforward as this:

df = pd.read_csv('file.csv')

We will explore more examples of loading data, including retrieving it from external websites, in the "Challenge" section.

Printing and Plotting

A Data Scientist frequently needs to explore data, so being able to visualize it is crucial. When working with large DataFrames, we often want to ensure everything is functioning correctly by printing the first few rows. This can be achieved by calling df.head(). If you run this in Jupyter Notebook, it will display the DataFrame in a neat tabular format.

We’ve also seen how to use the plot function to visualize specific columns. While plot is highly versatile and supports various graph types via the kind= parameter, you can always use the raw matplotlib library for more complex visualizations. We will delve deeper into data visualization in separate course lessons.

This overview covers the key concepts of Pandas, but the library is incredibly rich, offering endless possibilities! Let’s now apply this knowledge to solve specific problems.

🚀 Challenge 1: Analyzing COVID Spread

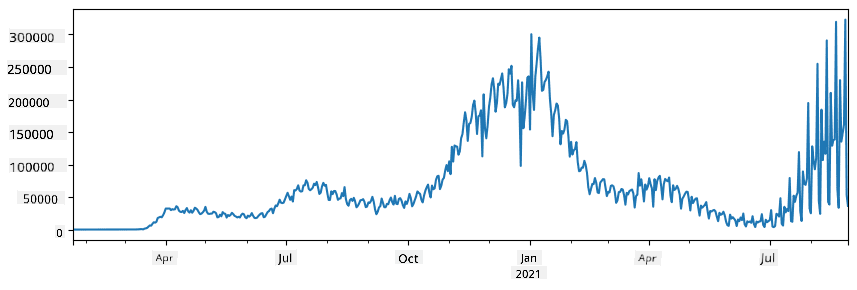

The first problem we’ll tackle is modeling the spread of the COVID-19 epidemic. To do this, we’ll use data on the number of infected individuals across different countries, provided by the Center for Systems Science and Engineering (CSSE) at Johns Hopkins University. The dataset is available in this GitHub Repository.

To demonstrate how to work with data, we encourage you to open notebook-covidspread.ipynb and go through it from start to finish. You can also execute the cells and try out some challenges we’ve included at the end.

If you’re unfamiliar with running code in Jupyter Notebook, check out this article.

Working with Unstructured Data

While data often comes in tabular form, there are cases where we need to work with less structured data, such as text or images. In these situations, to apply the data processing techniques we’ve discussed, we need to extract structured data. Here are a few examples:

Extracting keywords from text and analyzing their frequency
Using neural networks to identify objects in images
Detecting emotions in video camera feeds

🚀 Challenge 2: Analyzing COVID Papers

In this challenge, we’ll continue exploring the COVID pandemic by focusing on processing scientific papers on the topic. The CORD-19 Dataset contains over 7,000 papers (at the time of writing) on COVID, along with metadata and abstracts (and full text for about half of them).

A complete example of analyzing this dataset using the Text Analytics for Health cognitive service is described in this blog post. We’ll discuss a simplified version of this analysis.

NOTE: This repository does not include a copy of the dataset. You may need to download the metadata.csv file from this Kaggle dataset. Registration with Kaggle may be required. Alternatively, you can download the dataset without registration from here, which includes all full texts in addition to the metadata file.

Open notebook-papers.ipynb and go through it from start to finish. You can also execute the cells and try out some challenges we’ve included at the end.

Processing Image Data

Recently, powerful AI models have been developed to analyze images. Many tasks can be accomplished using pre-trained neural networks or cloud services. Examples include:

Image Classification, which categorizes images into predefined classes. You can train your own classifiers using services like Custom Vision.
Object Detection, which identifies various objects in an image. Services like Computer Vision can detect common objects, and you can train Custom Vision models to detect specific objects of interest.
Face Detection, including age, gender, and emotion recognition. This can be achieved using the Face API.

All these cloud services can be accessed via Python SDKs, making it easy to integrate them into your data exploration workflow.

Here are some examples of working with image data sources:

In the blog post How to Learn Data Science without Coding, we analyze Instagram photos to understand what makes people like a photo more. We extract information from images using Computer Vision and use Azure Machine Learning AutoML to build an interpretable model.
In the Facial Studies Workshop, we use the Face API to analyze emotions in event photographs to understand what makes people happy.

Conclusion

Whether you’re working with structured or unstructured data, Python allows you to perform all steps related to data processing and analysis. It’s one of the most flexible tools for data processing, which is why most data scientists use Python as their primary tool. If you’re serious about pursuing data science, learning Python in depth is highly recommended!

Post-lecture quiz

Review & Self Study

Books

Wes McKinney. Python for Data Analysis: Data Wrangling with Pandas, NumPy, and IPython

Online Resources

Official 10 minutes to Pandas tutorial
Documentation on Pandas Visualization

Learning Python

Learn Python in a Fun Way with Turtle Graphics and Fractals
Take your First Steps with Python Learning Path on Microsoft Learn

Assignment

Perform more detailed data study for the challenges above

Credits

This lesson was created with ♥️ by Dmitry Soshnikov
