Data-Science-For-Beginners/translations/en/5-Data-Science-In-Cloud/19-Azure

Data Science in the Cloud: The "Azure ML SDK" way

Data Science In The Cloud: Azure ML SDK - Sketchnote by @nitya

Table of contents:

• Data Science in the Cloud: The "Azure ML SDK" way
  • Pre-Lecture Quiz
  • 1. Introduction
    • 1.1 What is Azure ML SDK?
    • 1.2 Heart failure prediction project and dataset introduction
  • 2. Training a model with the Azure ML SDK
    • 2.1 Create an Azure ML workspace
    • 2.2 Create a compute instance
    • 2.3 Loading the Dataset
    • 2.4 Creating Notebooks
    • 2.5 Training a model
      • 2.5.1 Setup Workspace, experiment, compute cluster and dataset
      • 2.5.2 AutoML Configuration and training
  • 3. Model deployment and endpoint consumption with the Azure ML SDK
    • 3.1 Saving the best model
    • 3.2 Model Deployment
    • 3.3 Endpoint consumption
  • 🚀 Challenge
  • Post-lecture quiz
  • Review & Self Study
  • Assignment

Pre-Lecture Quiz

1. Introduction

1.1 What is Azure ML SDK?

Data scientists and AI developers use the Azure Machine Learning SDK to design and execute machine learning workflows with the Azure Machine Learning service. You can interact with the service in any Python environment, such as Jupyter Notebooks, Visual Studio Code, or your preferred Python IDE.

Key features of the SDK include:

• Explore, prepare, and manage the lifecycle of datasets used in machine learning experiments.
• Manage cloud resources for monitoring, logging, and organizing machine learning experiments.
• Train models locally or using cloud resources, including GPU-accelerated model training.
• Use automated machine learning, which takes configuration parameters and training data, and automatically iterates through algorithms and hyperparameter settings to find the best model for predictions.
• Deploy web services to transform trained models into RESTful services that can be integrated into any application.

Learn more about the Azure Machine Learning SDK

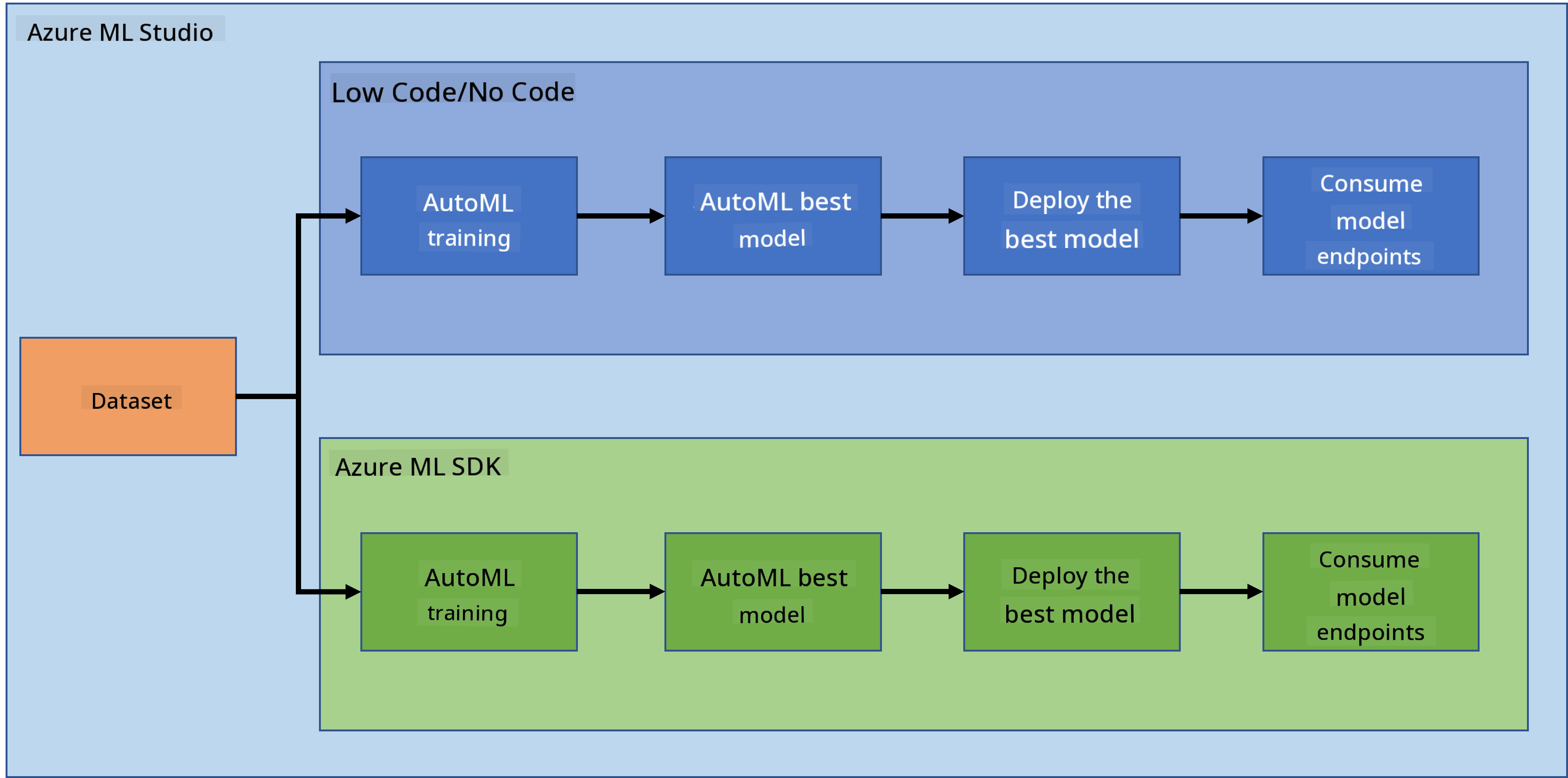

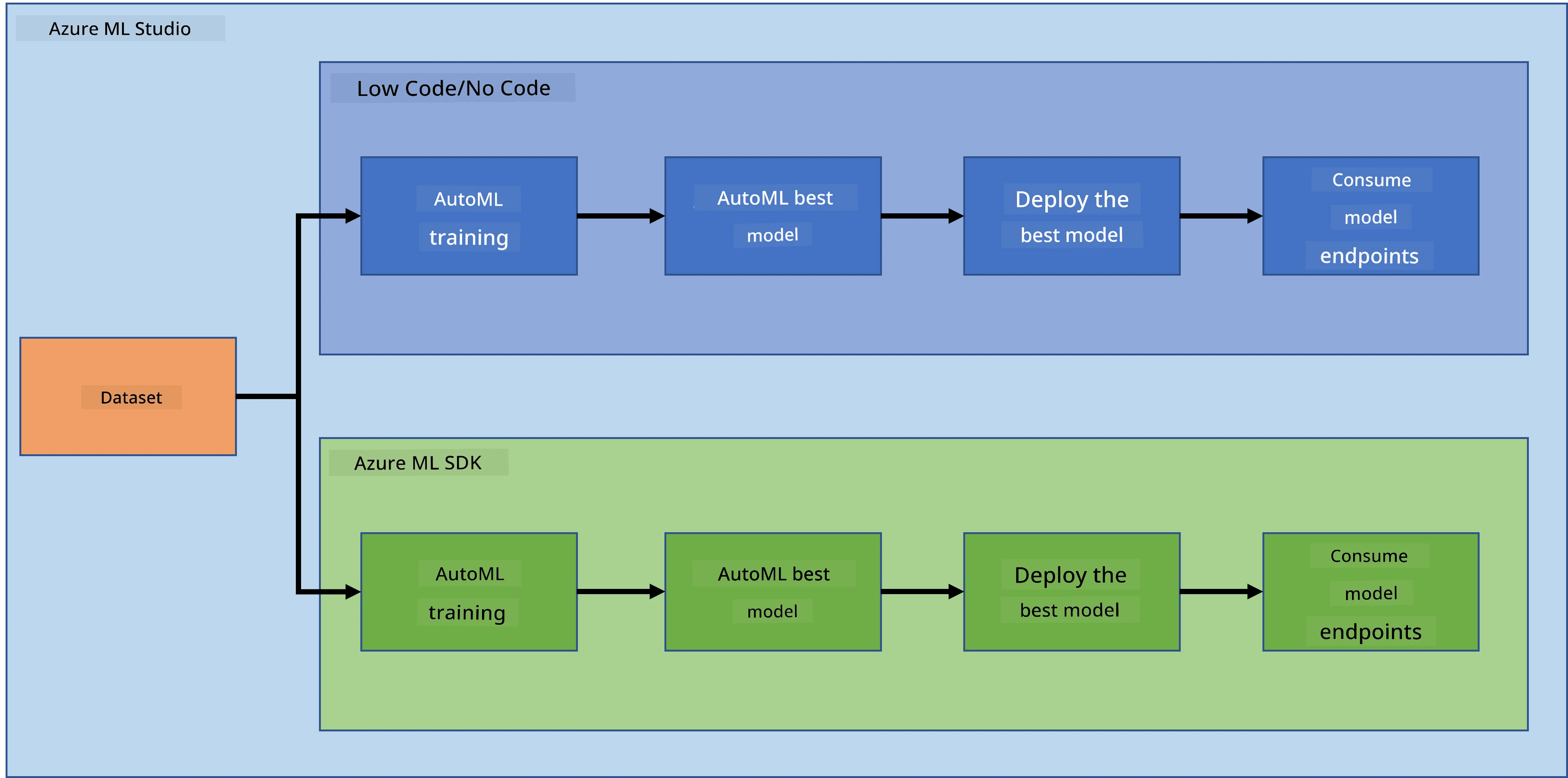

In the previous lesson, we explored how to train, deploy, and consume a model using a Low code/No code approach. We used the Heart Failure dataset to create a heart failure prediction model. In this lesson, we will achieve the same goal but using the Azure Machine Learning SDK.

1.2 Heart failure prediction project and dataset introduction

Refer here for the introduction to the Heart Failure prediction project and dataset.

2. Training a model with the Azure ML SDK

2.1 Create an Azure ML workspace

To simplify, we will work in a Jupyter notebook. This assumes you already have a Workspace and a compute instance. If you already have a Workspace, you can skip to section 2.3 Notebook creation.

If not, follow the instructions in section 2.1 Create an Azure ML workspace in the previous lesson to create a workspace.

2.2 Create a compute instance

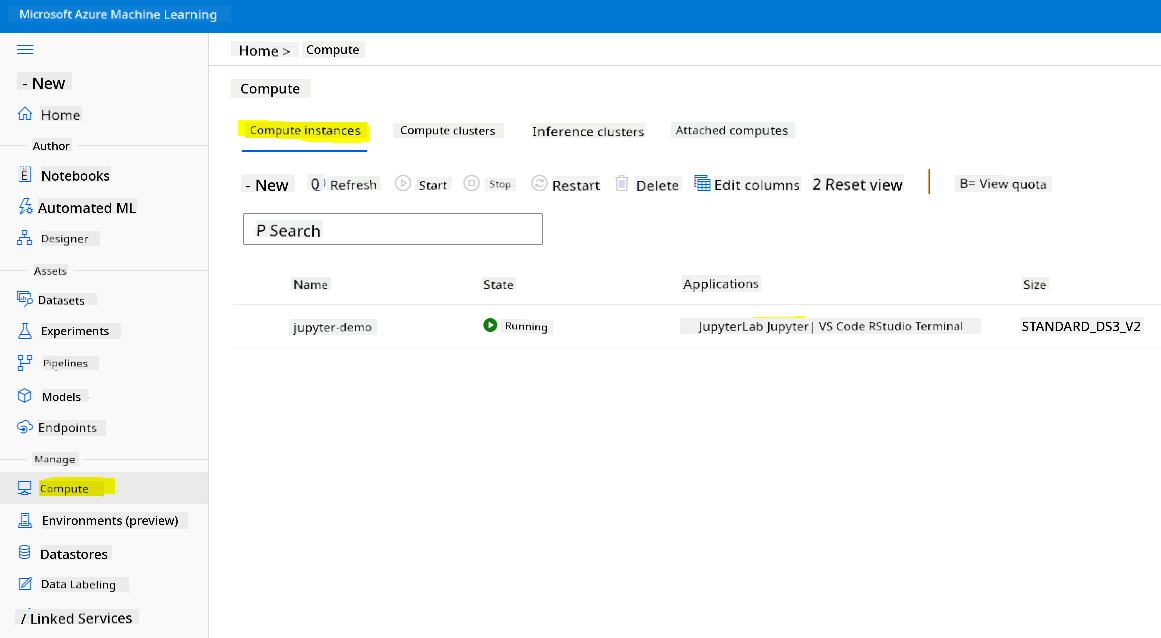

In the Azure ML workspace created earlier, navigate to the compute menu to view the available compute resources.

Let’s create a compute instance to host a Jupyter notebook.

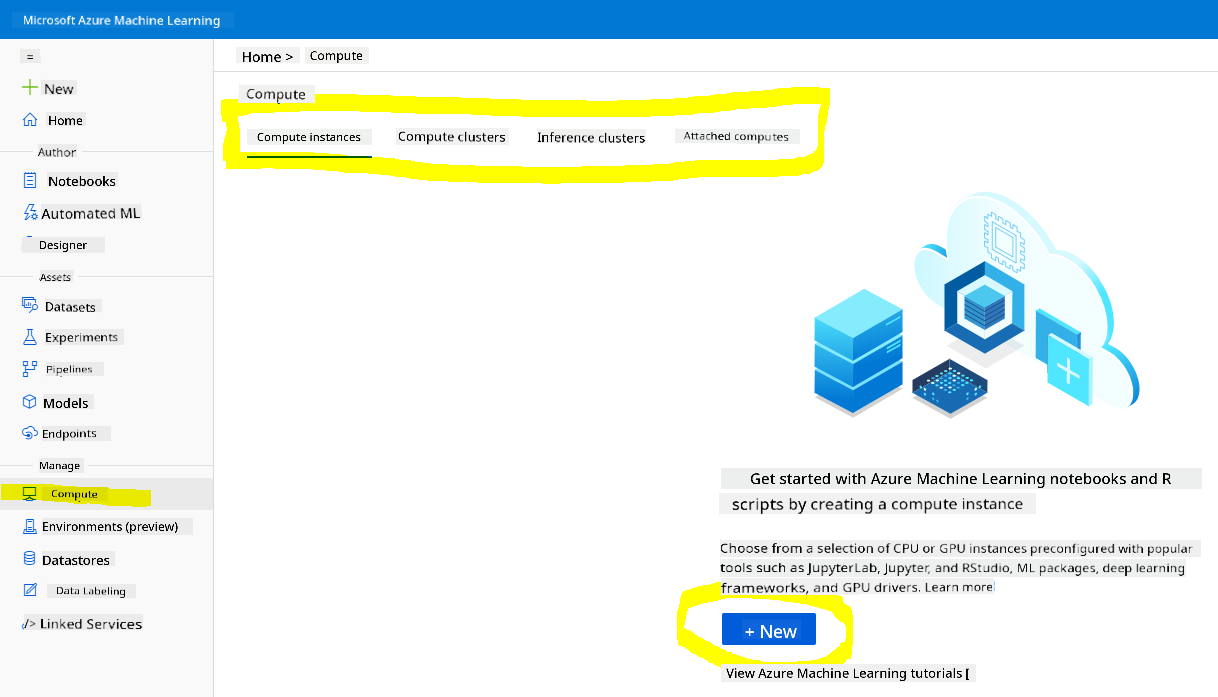

1. Click the + New button.
2. Assign a name to your compute instance.
3. Select your options: CPU or GPU, VM size, and core count.
4. Click the Create button.

Congratulations! You’ve created a compute instance. We’ll use this instance to create a Notebook in the Creating Notebooks section.

2.3 Loading the Dataset

Refer to the previous lesson under section 2.3 Loading the Dataset if you haven’t uploaded the dataset yet.

2.4 Creating Notebooks

NOTE: For the next step, you can either create a new notebook from scratch or upload the notebook we created to your Azure ML Studio. To upload it, simply click on the "Notebook" menu and upload the notebook.

Notebooks are a crucial part of the data science workflow. They can be used for Exploratory Data Analysis (EDA), calling a compute cluster to train a model, or calling an inference cluster to deploy an endpoint.

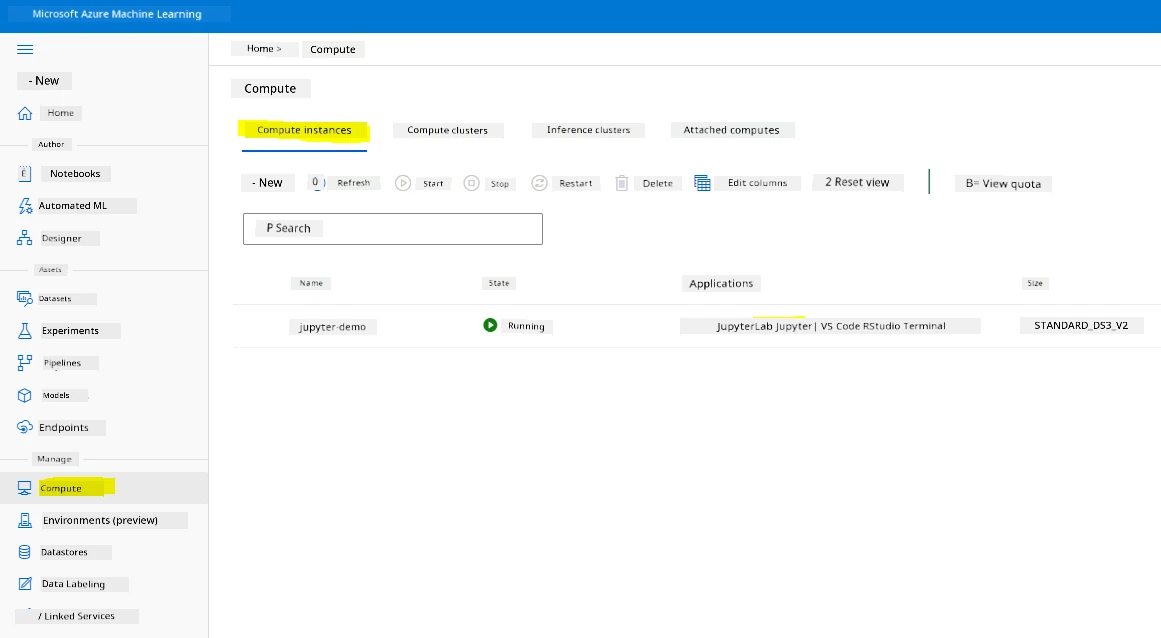

To create a Notebook, you need a compute node running the Jupyter notebook instance. Return to the Azure ML workspace and click on Compute instances. In the list of compute instances, you should see the compute instance we created earlier.

1. In the Applications section, click on the Jupyter option.
2. Tick the "Yes, I understand" box and click Continue.

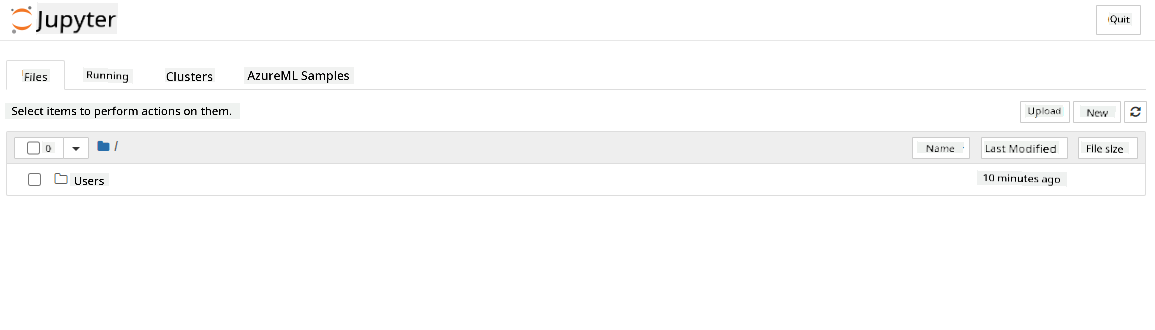

3. This will open a new browser tab with your Jupyter notebook instance. Click the "New" button to create a notebook.

Now that we have a Notebook, we can start training the model using the Azure ML SDK.

2.5 Training a model

If you ever have questions, refer to the Azure ML SDK documentation. It contains all the necessary details about the modules we’ll cover in this lesson.

2.5.1 Setup Workspace, experiment, compute cluster and dataset

Load the workspace from the configuration file using the following code:

from azureml.core import Workspace
ws = Workspace.from_config()

This returns a Workspace object representing the workspace. Next, create an experiment using the following code:

from azureml.core import Experiment
experiment_name = 'aml-experiment'
experiment = Experiment(ws, experiment_name)

To get or create an experiment from a workspace, request the experiment using its name. Experiment names must be 3-36 characters, start with a letter or number, and can only contain letters, numbers, underscores, and dashes. If the experiment doesn’t exist in the workspace, a new one is created.

Now, create a compute cluster for training using the following code. Note that this step may take a few minutes.

from azureml.core.compute import AmlCompute

aml_name = "heart-f-cluster"
try:
    aml_compute = AmlCompute(ws, aml_name)
    print('Found existing AML compute context.')
except:
    print('Creating new AML compute context.')
    aml_config = AmlCompute.provisioning_configuration(vm_size = "Standard_D2_v2", min_nodes=1, max_nodes=3)
    aml_compute = AmlCompute.create(ws, name = aml_name, provisioning_configuration = aml_config)
    aml_compute.wait_for_completion(show_output = True)

cts = ws.compute_targets
compute_target = cts[aml_name]

Retrieve the dataset from the workspace using its name as follows:

dataset = ws.datasets['heart-failure-records']
df = dataset.to_pandas_dataframe()
df.describe()

2.5.2 AutoML Configuration and training

Set the AutoML configuration using the AutoMLConfig class.

As described in the documentation, there are many parameters you can customize. For this project, we’ll use the following:

• experiment_timeout_minutes: Maximum time (in minutes) the experiment can run before stopping automatically.
• max_concurrent_iterations: Maximum number of concurrent training iterations allowed.
• primary_metric: Metric used to evaluate the experiment’s status.
• compute_target: Azure Machine Learning compute target for running the experiment.
• task: Type of task to run (e.g., 'classification', 'regression', or 'forecasting').
• training_data: Training data for the experiment, including features and a label column (optionally a sample weights column).
• label_column_name: Name of the label column.
• path: Full path to the Azure Machine Learning project folder.
• enable_early_stopping: Whether to enable early termination if the score doesn’t improve in the short term.
• featurization: Whether to perform automatic featurization or use customized featurization.
• debug_log: Log file for writing debug information.

from azureml.train.automl import AutoMLConfig

project_folder = './aml-project'

automl_settings = {
    "experiment_timeout_minutes": 20,
    "max_concurrent_iterations": 3,
    "primary_metric" : 'AUC_weighted'
}

automl_config = AutoMLConfig(compute_target=compute_target,
                             task = "classification",
                             training_data=dataset,
                             label_column_name="DEATH_EVENT",
                             path = project_folder,
                             enable_early_stopping= True,
                             featurization= 'auto',
                             debug_log = "automl_errors.log",
                             **automl_settings
                            )

Once the configuration is set, train the model using the following code. This step may take up to an hour depending on your cluster size.

remote_run = experiment.submit(automl_config)

Use the RunDetails widget to display the different experiments.

from azureml.widgets import RunDetails
RunDetails(remote_run).show()

3. Model deployment and endpoint consumption with the Azure ML SDK

3.1 Saving the best model

The remote_run is an object of type AutoMLRun. This object has a get_output() method that returns the best run and its corresponding fitted model.

best_run, fitted_model = remote_run.get_output()

View the parameters used for the best model by printing the fitted_model, and check the properties of the best model using the get_properties() method.

best_run.get_properties()

Register the model using the register_model method.

model_name = best_run.properties['model_name']
script_file_name = 'inference/score.py'
best_run.download_file('outputs/scoring_file_v_1_0_0.py', 'inference/score.py')
description = "aml heart failure project sdk"
model = best_run.register_model(model_name = model_name,
                                model_path = './outputs/',
                                description = description,
                                tags = None)

3.2 Model Deployment

After saving the best model, deploy it using the InferenceConfig class. InferenceConfig specifies the configuration settings for a custom environment used for deployment. The AciWebservice class represents a machine learning model deployed as a web service endpoint on Azure Container Instances. The deployed service is a load-balanced HTTP endpoint with a REST API. You can send data to this API and receive predictions from the model.

Deploy the model using the deploy method.

from azureml.core.model import InferenceConfig, Model
from azureml.core.webservice import AciWebservice

inference_config = InferenceConfig(entry_script=script_file_name, environment=best_run.get_environment())

aciconfig = AciWebservice.deploy_configuration(cpu_cores = 1,
                                               memory_gb = 1,
                                               tags = {'type': "automl-heart-failure-prediction"},
                                               description = 'Sample service for AutoML Heart Failure Prediction')

aci_service_name = 'automl-hf-sdk'
aci_service = Model.deploy(ws, aci_service_name, [model], inference_config, aciconfig)
aci_service.wait_for_deployment(True)
print(aci_service.state)

This step may take a few minutes.

3.3 Endpoint consumption

Consume your endpoint by creating a sample input:

data = {
    "data":
    [
        {
            'age': "60",
            'anaemia': "false",
            'creatinine_phosphokinase': "500",
            'diabetes': "false",
            'ejection_fraction': "38",
            'high_blood_pressure': "false",
            'platelets': "260000",
            'serum_creatinine': "1.40",
            'serum_sodium': "137",
            'sex': "false",
            'smoking': "false",
            'time': "130",
        },
    ],
}

test_sample = str.encode(json.dumps(data))

Then send this input to your model for predictions:

response = aci_service.run(input_data=test_sample)
response

This should output '{"result": [false]}'. This means that the patient input we sent to the endpoint generated the prediction false, indicating that this person is not likely to have a heart attack.

Congratulations! You have successfully used the model deployed and trained on Azure ML with the Azure ML SDK!

NOTE: Once you finish the project, remember to delete all the resources.

🚀 Challenge

There are many other things you can do with the SDK, but unfortunately, we can't cover them all in this lesson. The good news is that learning how to navigate the SDK documentation can help you explore further on your own. Check out the Azure ML SDK documentation and look for the Pipeline class, which allows you to create pipelines. A Pipeline is a sequence of steps that can be executed as a workflow.

HINT: Visit the SDK documentation and use keywords like "Pipeline" in the search bar. You should find the azureml.pipeline.core.Pipeline class in the search results.

Post-lecture quiz

Review & Self Study

In this lesson, you learned how to train, deploy, and consume a model to predict heart failure risk using the Azure ML SDK in the cloud. Refer to this documentation for more details about the Azure ML SDK. Try creating your own model using the Azure ML SDK.

Assignment

Data Science project using Azure ML SDK

---
